The most advanced side-by-side 3D underwater housing ever made

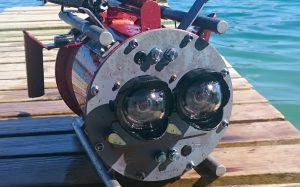

3Deep Underwater Housing
The first and the only underwater optics able to resolve 4k, 6k, 8K and beyond underwater!
No distortions, no chromatic aberrations, no image plane curvature and no astigmatism caused by optical ports
Light and small - less than 20kg (44 lbs) ready to dive!
Ultra-wide angle capability in 3D (84.3°diagonal)
Depth rating is 60m (unlimited with pressure compensation)
Strong, durable and light all-titanium precision machined body and accessories
The Winner of the Innovation Award at NAB Show 2013, Las Vegas
Inter-axial (IA) distance is about 100mm (4″)
Using full Bercovitz formula, for 2% total parallax (0.6mm on film) and Nikon Nikonos 15mm lens the following are nearest – furthest subject distances:
1.0m – 1.4m, focus on 1.17m
1.5m – 2.7m, focus on 1.93m
2.0m – 5.0m, focus on 2.86m
2.5m – 10.0m, focus on 4.00m
3.0m – 20.0m, focus on 5.22m
Compatible Lenses:
Sea&Sea 12mm fisheye F/3.5
Nikon UW-Nikkor 15mm F/2.8N
Nikon UW-Nikkor 20mm F/2.8N
Nikon UW-Nikkor 28mm F/2.8
Nikon LW-Nikkor 28mm F/2.8 (water resistant, land only use)
Nikon UW-Nikkor 35mm F/2.5
Nikon W-Nikkor 80mm F/4.0
ACHTEL Pty Limited specialises in immersive cinematography for Giant Screen, IMAX®, Flying Theatre, Sphere and VFX above and underwater. Our innovative products and cinematography won international awards and attention for uncompromised approach to image quality. ACHTEL’s products have been used on many documentaries and feature films, including James Cameron’s Avatar: The Way of Water.
